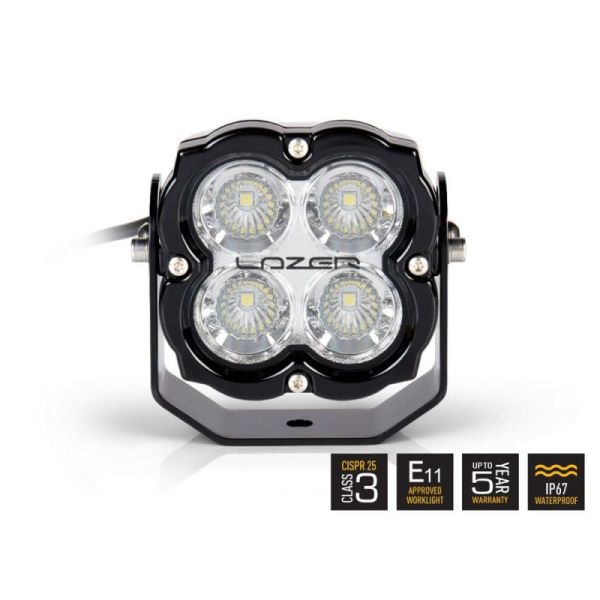

Lazer UTILITY 45 Gen2 LED Headlight, 4560 Lm, 45 Watts, 110 mm width

The Utility series is an extremely versatile, medium-duty work light which, thanks to the latest advances in LED lighting technology, delivers superior light output levels given its compact size. Sharing product DNA with the robust Utility-25, Utility-45 and Utility-80 work lights, the lamp is rugged and designed to deliver consistent and reliable luminous flux perfectly suited to a wide range of applications and vehicle types.

Measuring 80 mm x 80 mm and capable of operating between 9 and 32 V, the Utility utilises highly efficient 6W LEDs from a global leader in LED design and manufacturing. Like all Lazer products, the LED colour temperature is carefully selected at 5000 kelvins to maximise sharpness and definition of the area ahead, without causing fatigue or strain that may arise from using LEDs with a higher colour range. The vacuum-metallised optics harness the 3,016 raw lumens delivering a 78-degree spread (to 10% of peak intensity).

Impressive lighting performance is maintained through the high thermal conductivity of the 'Matrix' cooling system which enables the light to operate at higher drive current without compromising the longevity of the LEDs themselves.

Designed and manufactured in the UK, the Utility-25 is a product built to last and withstand harsh environments. The hard-coated polycarbonate lens is bonded in place to ensure sealing (IP69K), whilst the lamps have undergone thorough testing to comply with EU regulations on vibration, shock and corrosion resistance. Advanced electronic design ensures complete EMC protection in compliance with CISPR-25 standards (Class 5).

Supplied with male/female Deutsch connectors (reference DT06-2S/DT04-2P) and ADR-approved through additional cable protection, the Utility is also supplied with a stainless steel mounting system painted in satin black, which allows flexibility in mounting the light in many different orientations.

What is included:
• Utility-25 LED Work Light
• Mounting Bracket

Highlights:
• UN-ECE approved work light (Reg 10)
• High-density premium 'bin' LED
• Advanced optical design delivers superior lighting performance
• CAE-optimised 'Matrix' cooling system delivers enhanced thermal dynamics
• Electronic thermal management system optimises light output to preserve LED longevity
• Anodised pre-treatment and automotive-grade powder coat finish for ultimate protection against corrosion and chemicals
• EMC Protection - CISPR 25:2008 (Class 5)
• Surge protection
• Reverse polarity protection
• ADR-compliant versions available (does not cover vehicle-side connections)
• 'Unbreakable' polycarbonate lens with hard lacquer
• IP69 waterproof
• Supplied with pre-wired 2-pin male/female Deutsch connectors
• Designed and manufactured in the UK

Specifications:
• Model: BJ738 BK738
• Voltage Range (DC): BM738
• LED Lifespan: BO738
• Weight: BN738
• Total Luminous Flux: BP738
• Colour Temperature: BQ738
• Number of High-Efficiency LEDs: BR738
• Power Consumption: BS738
• Current Draw (at 14.4 V): BT738
• Certification: BU738
• Width: BL738

Photometric Data:
• Horizontal Beam Angle: BV738
• 0.25 lx Line: BW738
• 0.5 lx Line: BX738
• 1 lx Line: BY738
• 3 lx Line: BZ739
