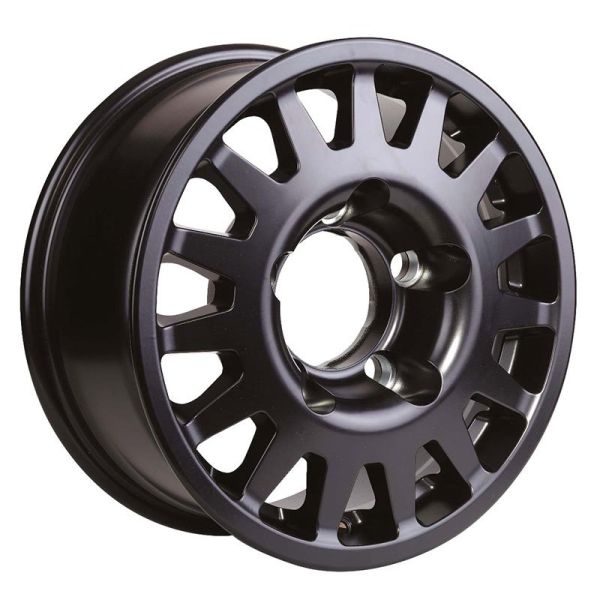

The MANANO 7x16 aluminium wheel from OC WHEELS in black finish is specially developed for Mercedes Sprinter 4x4 and extreme off-road missions. Die-cast, it offers a load capacity up to 1300 kg via its high-performance alloy (Al Si 7% Mg Sr) and optimised heat treatment.
Combining lightness and extreme robustness, this wheel guarantees unmatched performance on raid and off-road exploration. Perfectly adapted to Mercedes Sprinter 4x4, it supports the heaviest loads without compromise. Delivered without fasteners; installation to be validated according to your configuration.
| Brand | OC Wheels |
|---|---|
| Supplier SKU | MAN230BK |
| Bolt Pattern (P.C.D.) | 6x130 |
| Wheel Rim Size (Width x Diameter) | 7x16 |
| Wheel Rim Color | Black |
| Wheel Rim Offset (E.T.) | 40 mm |
| Wheel Rim Bore (C.B.) | 84.10 mm |
| Wheel Rim Material | Aluminium |
This wheel (6x130 bolt pattern, 84.1 mm centre bore) fits 5 vehicles from 2 makes listed below. A smaller hub is centred with a hub-centric ring.
Important: also check the diameter (brake caliper clearance), the offset and the wheel arch clearance for your vehicle.
